Platypus QuickDraw Microfilter

Jump to: Our Verdict / Features / Specifications

UOG TOP PICK – QuickDraw Microfilter – Thoughtfully designed by experts in hydration, the QuickDraw features an attached clean side cap for an always-clean drink interface, while the durable RF-welded reservoir has a wide mouth for rapid filling at any water source. Simple, portable, Lightweight- one of our Top Picks

Platypus says:

Like the QuickDraw System but without the reservoir, the easy-to-use QuickDraw Microfilter will revolutionize your adventure filtration system. With its inside/outside (I/O) dual-thread design, the QuickDraw filter cartridge securely adapts to smartwater® bottles, most Platy bottles and reservoirs and many common soda/water bottles allowing you to develop your ideal personalized kit. Weighing just 2.2 oz (63 g) and filtering up to 3L per minute, the QuickDraw allows quick and easy access to clean water during ultralight missions and any other adventure. You can either shake-to-clean the hollow fiber filter or perform a tool-free backflush to ensure the fast flow rates will stick around for the duration of your trips. Design elements like the attached clean side cap and grippy-but-not-sticky filter housing eliminate frustrations like leaking water in the pack, lost small parts, and dirt-caked gear so you can confidently go out and explore the wilderness.

Our Verdict

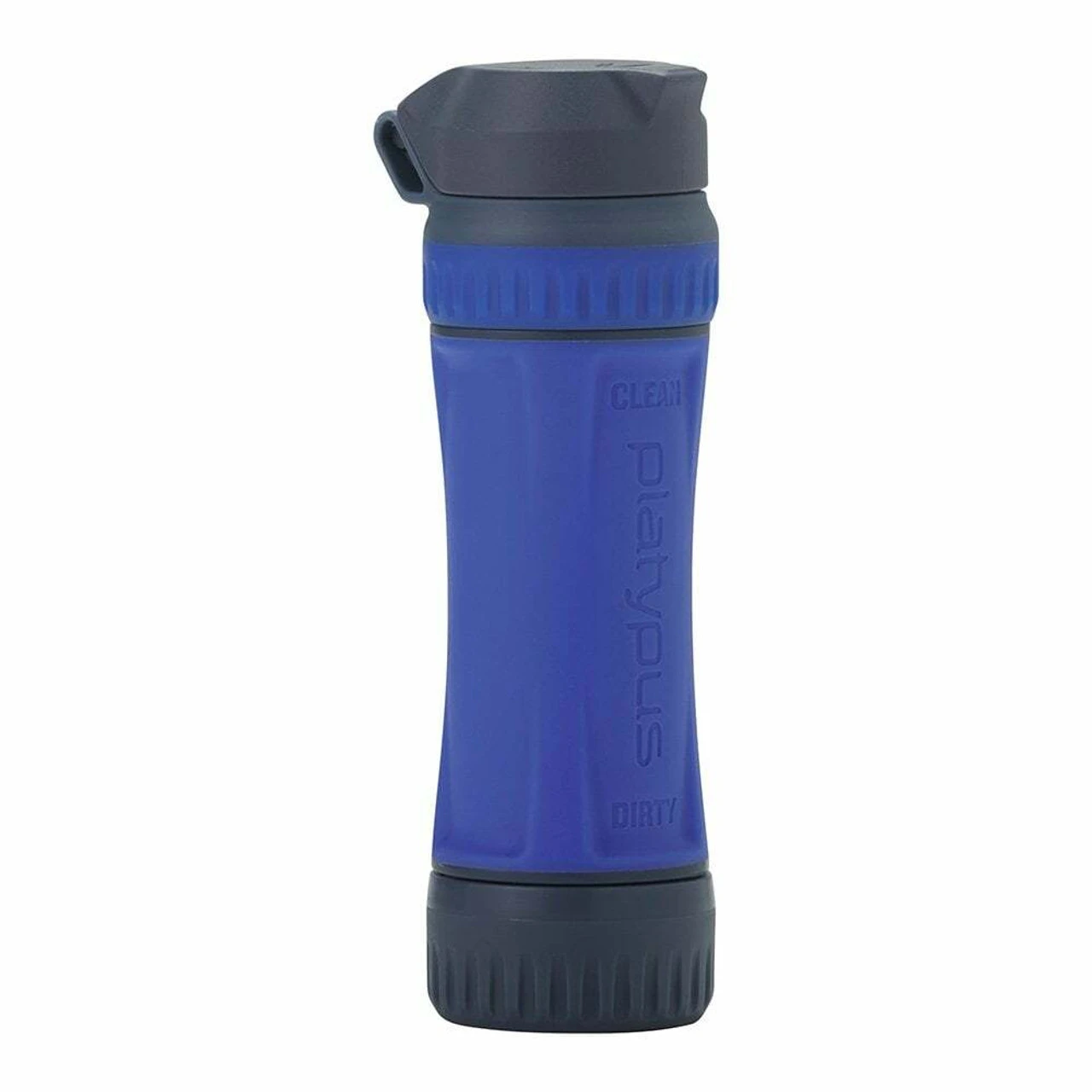

Platypus’ QuickDraw Microfilter is exactly that, a very small filter weighing just 68g and measuring just under 13cm in length with a 4cm diameter. It uses hundreds of tiny hollow fibres to filter to quickly clean up to 3L of water per minute but this is when it is working at 100% so usually the flow rate is less than this but even after a lot of use the rate is decent enough. For such a lightweight piece of kit it is seriously durable and should keep going with regular cleaning and a bit of care. It is quick and easy to clean with a simple shake with clean water or a backflush (with no need for any tools).

You can use this filter as a straw directly at the water source or attach it to a bottle of water to drink easily. The filter can be combined with a range of Platypus hydration options or other branded bottles with a 28mm screw top opening. It safely removes 99.9999% of bacteria and 99.9% of protozoa, including Giardia, Cryptosporidium, E. coli, Salmonella and Cholera.

– Reviewed by Ultralight Outdoor Gear

In-depth Reviews:

• Platypus QuickDraw Micro Review – Trek Scotland

Features

• Ultralight & Compact: The filter weighs just 2.2 oz (63 g) and packs small for easy access anywhere on or in your packing system.
• Build Your Own System: The I/O dual-thread design allows the filter cartridge to natively attach to the QuickDraw Reservoir, smartwater® bottles, the Platy Hoser, most Platy bottles and certain common 28mm PET soda/water bottles.
• Ultrafast Flow Rates: Hollow fiber cartridge filters up to 3L per minute with normal squeeze pressure.
• Easy, Effective Cleaning: Shake-to-clean or tool-free backflush methods make for quick and easy cleaning of the filter, so you can have fast filtration for your entire trip.

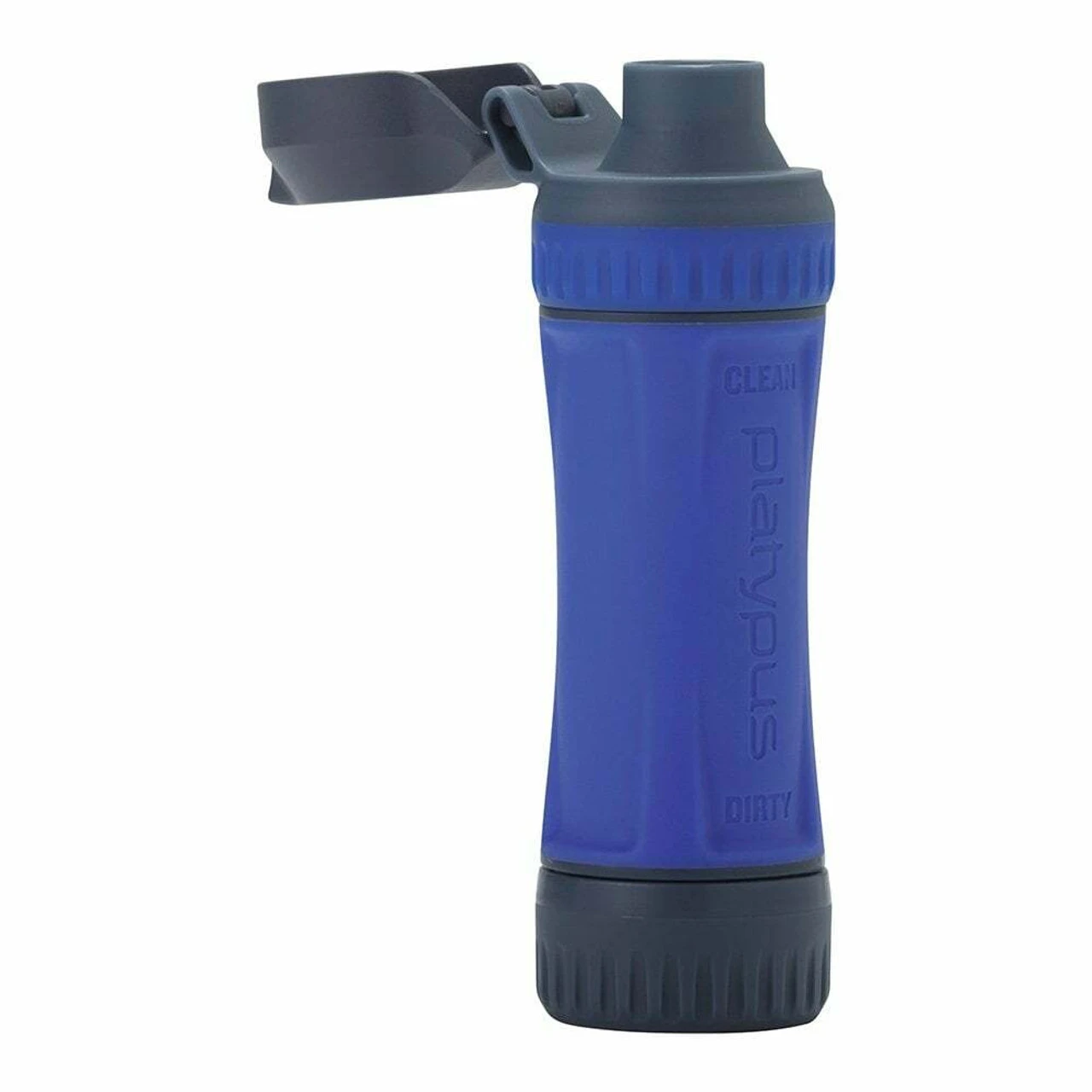

• Thoughtfully Rugged Design: Attached clean side cap flips open and creates a secure seal when closed, while the soft-touch filter housing is grippy even when wet and won’t pick up dirt from the ground.

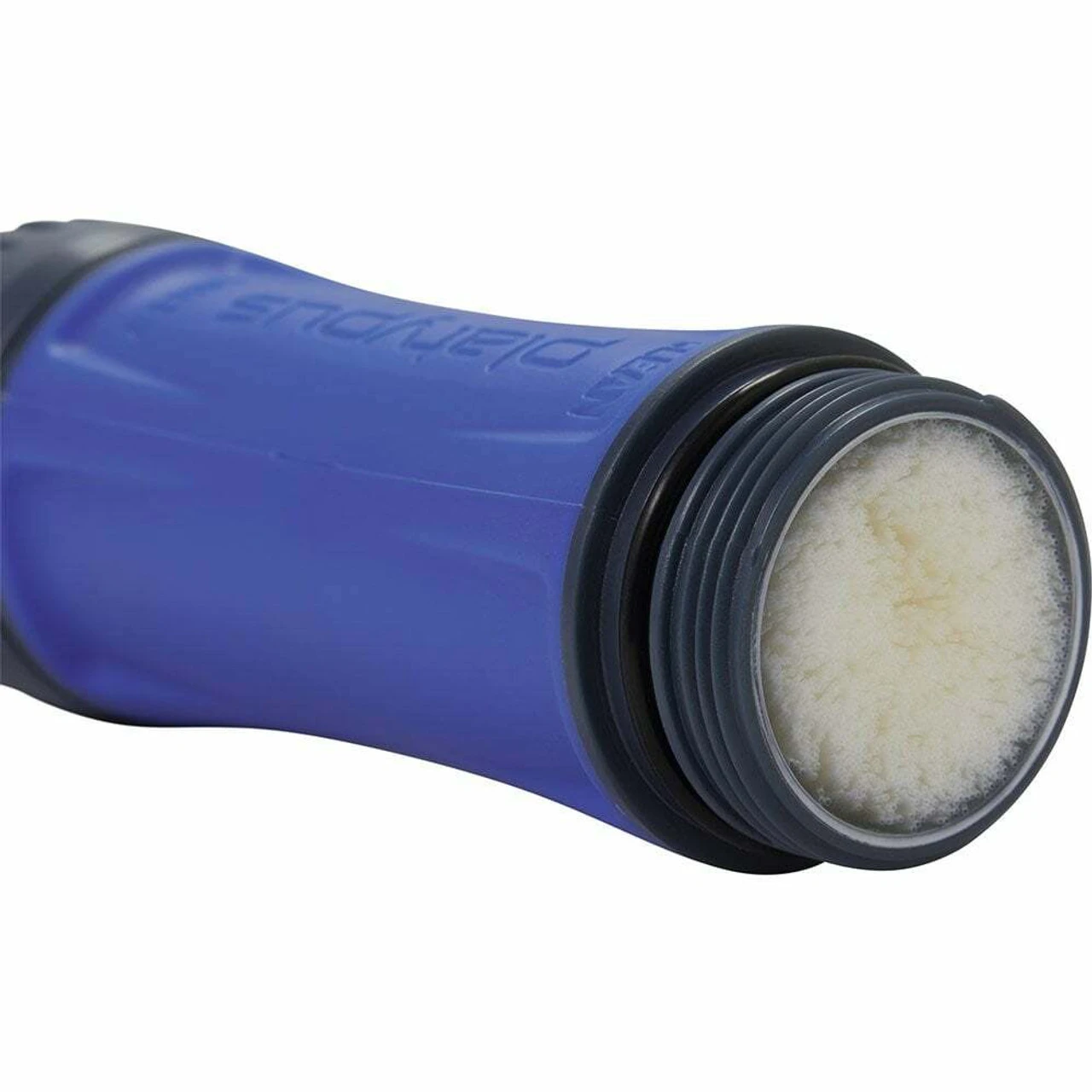

• Hollow Fiber Advantage: Hundreds of tiny hollow fibers enable the microfilter to filter water faster than traditional filter media.
• Effective: Each microfilter is individually tested to ensure it meets all EPA & NSF guidelines for the removal of 99.9999% of bacteria and 99.9% of protozoa*. *This includes Giardia, Cryptosporidium, E. coli, Salmonella and Cholera.

Specifications

• Weight: 68g
• Dimensions (LxHxW): 12.7 x 4 x 4.6cm
• Flow rate: Up to 3 liters per minute or 1L in less than 30 seconds

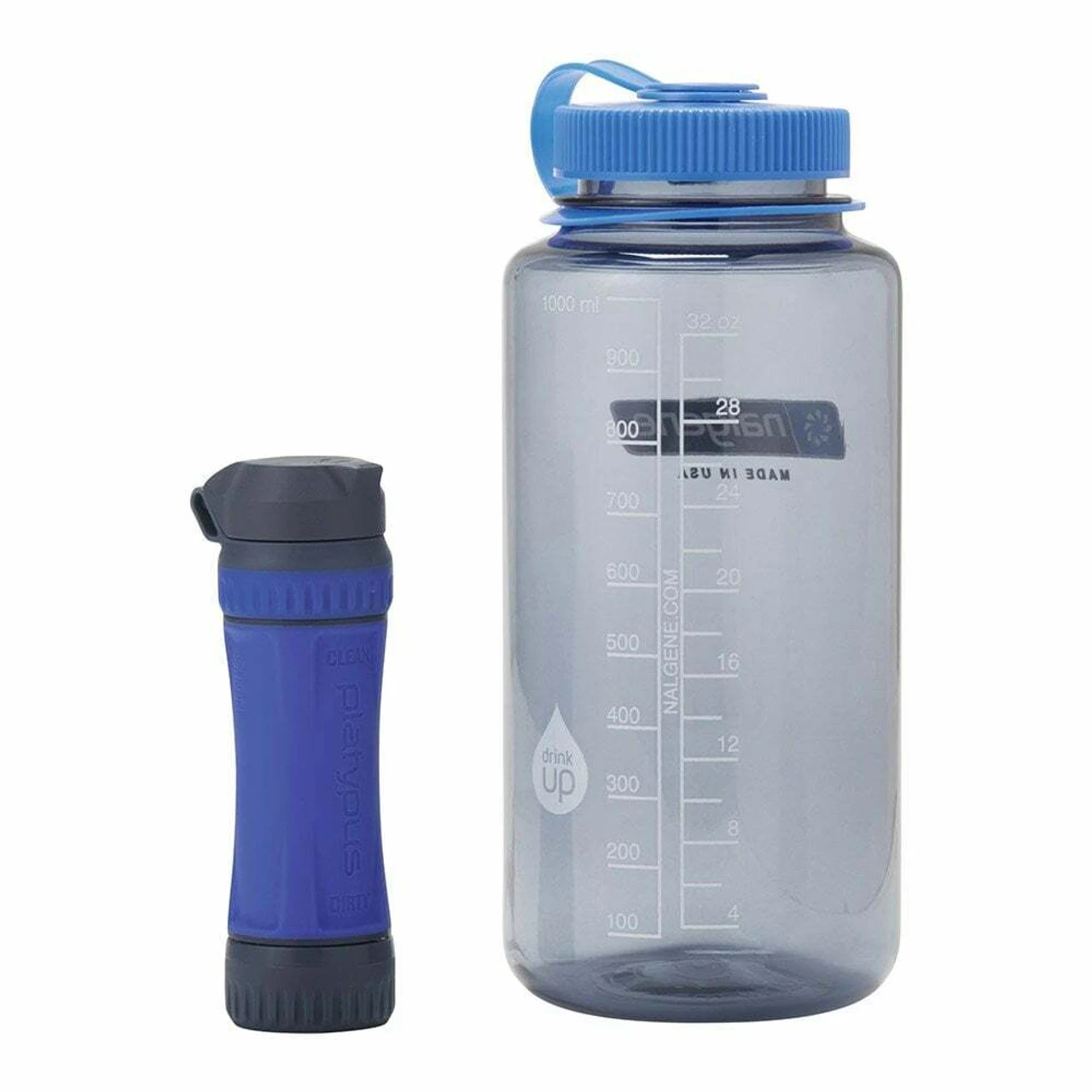

• Microfilter compatible with: QuickDraw Reservoir, Hoser Reservoir, Platy SoftBottle, Platy 2.0L Bottle, Smartwater Bottle, Platy Water Tank.
